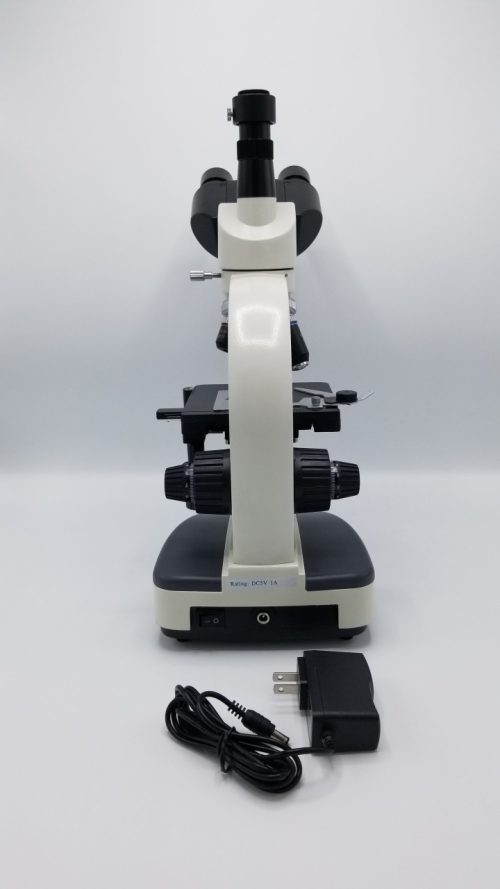

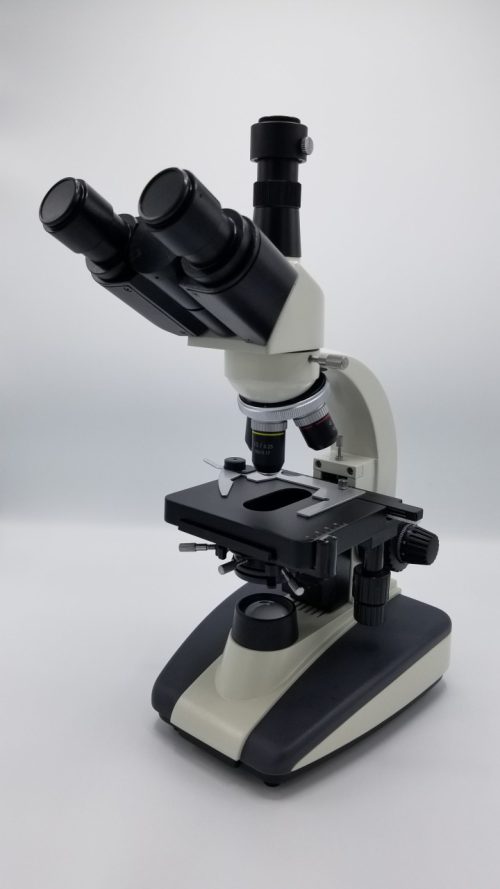

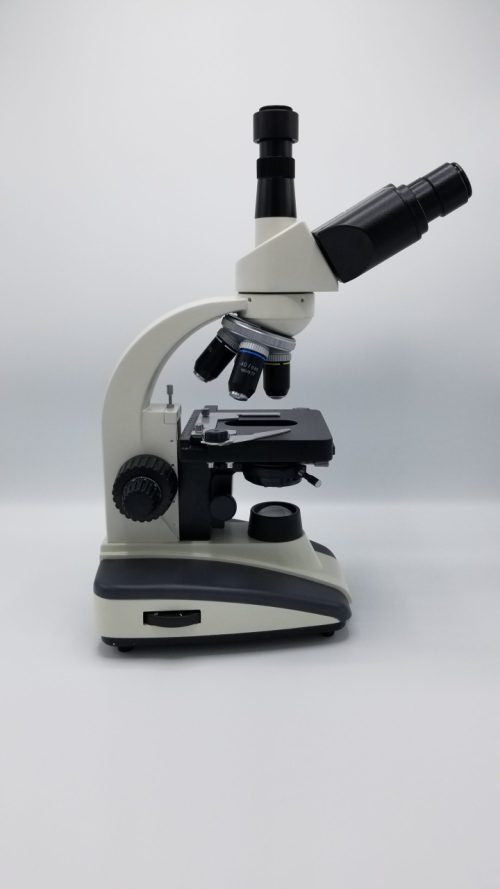

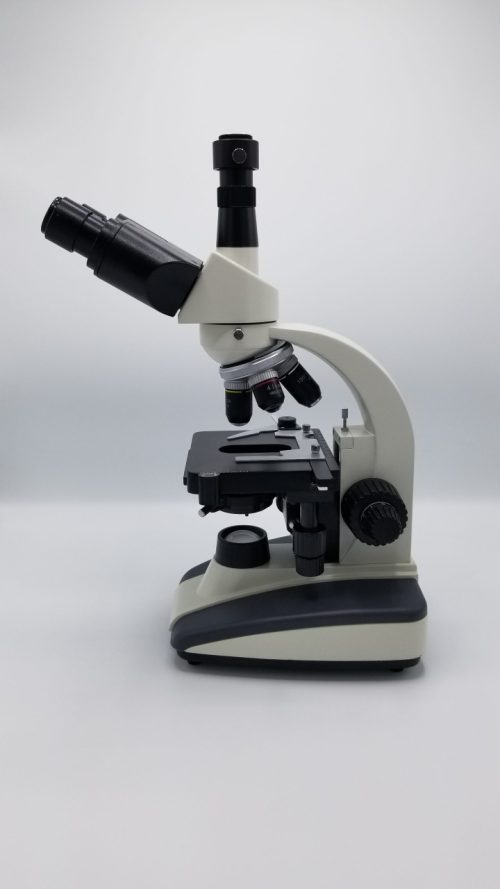

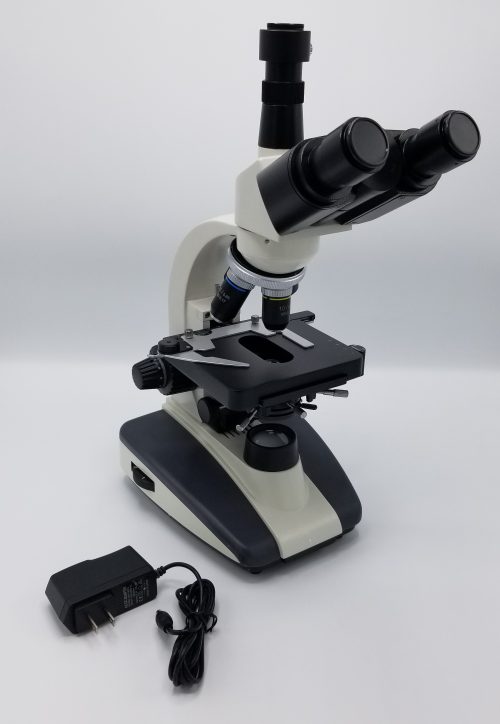

Biological Microscope GM-03E


5 in stock

SKU: MIC-TRI-GM-03E Category:


This biological microscope can be much widely used in the research of biology, bacteriology, histology and pathology. It can also be used in school laboratories for teaching.

Fully coated optical system, Mechanical tube length 160 mm
Compensation free binocular head, Interpupilary distance 55-75 mm, 360° rotatable
45 mm parfocal and achromatic Objectives
Double-layer mechanical stage: stage size 120×125 mm, moving range 35×70 mm
Coaxial coarse and fine focus adjustment: range 30 mm, division of fine focus adjustment 0.002 mm
Focusing stop to prevent objectives & slides from damaging
Rack and pinion adjustment for condenser
Built-in illumination, Adjustable brightness
Power supply 110 V or 220 V, CE approval
A wide range of accessories to be equipped with this multi-purpose microscope

Standard Configuration:
Viewing Head                       Compensation free binocular head Inclined at 30º, 360° rotatable
Nosepiece                              Quadruple nosepiece
Eyepiece                                 WF10X
Objective                                Achromatic 4X, 10X, 40X (S), 100X (S, Oil)
Stage                                       Double-layer mechanical stage, size: 120×125 mm
Condenser                             Abbe NA1.25 condenser with iris diaphragm & filter, rack & pinion adjustment
Focusing                                Coaxial coarse & fine focus adjustment
Illumination                         Built-in illumination, halogen lamp 6 V/20 W
Package                                 Each set in styrofoam put to one inner box, 1 inner box filled to 1 carton
Weight                                   11 lb

Additional information

Weight 176 oz
Dimensions 14 × 9 × 17 in
