40X-2000X LED Lab Trinocular Compound Microscope w 3D Two-Layer Mechanical Stage

$385.00



  • Eight widefield magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X
  • Professional 30 degree inclined 360 degree swiveling Siedentopf trinocular head
  • Large 3-D double layer mechanical stage with coaxial coarse & fine focusing
  • High quality Abbe condenser with iris diaphragm & filter
  • Powerful single bulb LED illumination with dimmer
  • 23mm Trinocular port for adding photo/video capability
  • Made by AmScope





5 in stock

SKU: MIC-TRI-120 Category: Tags: ,

Description

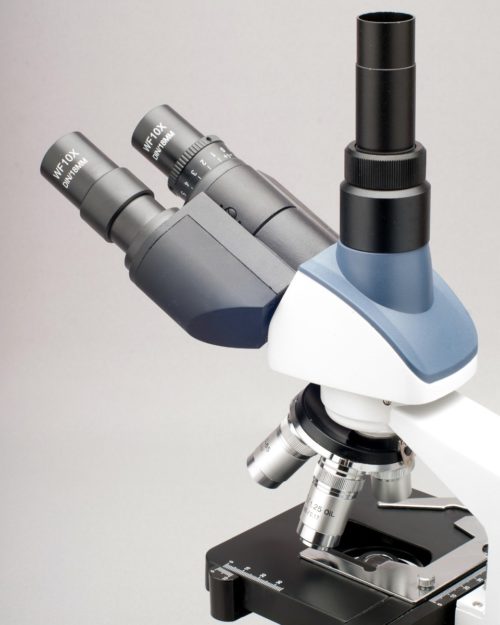

This new AmScope trinocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf trinocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. Its trinocular port 23mm allows to add photo/video capability. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

  • 30 degree inclined 360 degree swiveling Siedentopf trinocular head
  • High quality precise optical glass elements
  • Easy to attach a microscope camera or digital imager
  • Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
  • Two pairs of widefield eyepieces: WF10X and WF20X
  • Adjustable interpupillary distance
  • Adjustable ocular diopter
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs are on both sides
  • Stage upward moving lock protects objectives and slides
  • Stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser



Specifications :

  • Eyepieces: widefield, WF10X and WF20X
  • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Head: 30 degree inclined 360 degree swiveling trinocular
  • Interpupillary distance: 2-1/8″ – 3-1/8″ (53mm – 77mm)
  • Adjustable ocular diopter
  • Nosepiece: revolving quadruple
  • Mechanical Stage: 3-D double layer
  • – Size: 4-5/8″ x 5″ (118mm x 127mm)
  • – Travel Range (X-Y): 2-13/16″ x 1-3/16″ (70mm x 30mm)
  • Condenser: NA1.25 Abbe condenser with iris diaphragm
  • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
  • Dimension: 11″ x 7″ x 13-3/4″ (280mm x 178mm x 350mm)



Packing List :

  • One Siedentopf Trinocular Microscope Head
  • One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 20X Eyepieces
  • One Blue Color Filter
  • One Dust Cover
  • Sample Immersion Oil
  • User’s Manual Download
  • Net weight: 11 lbs
  • Shipping weight: 13 lbs

Additional information

Weight 260 oz
Dimensions 12 × 10 × 18 in
